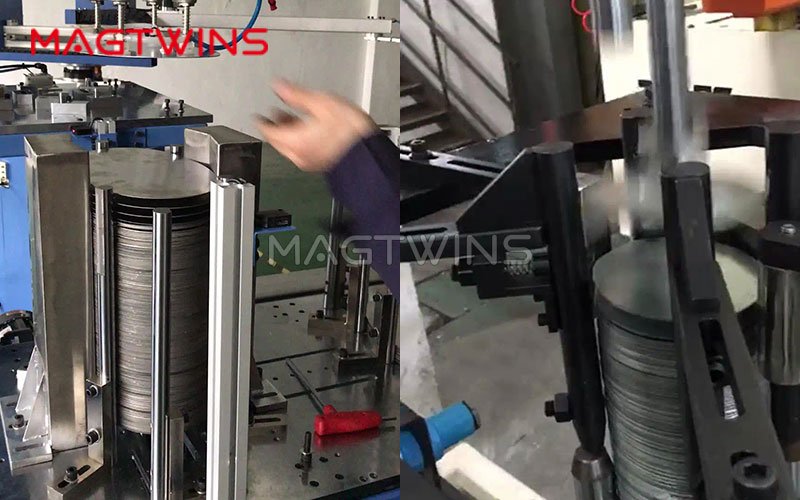

MSF Magnetic Sheet Separator Fanners is designed to seperate sticky or oiled steel sheets. A powerful magnetic field automatically forces sheets apart and separates them; when the uppermost sheet is removed, the next rises immediately.
| Model | Length (mm) | Width (mm) | Height(mm) | Weight (kg) |
|---|---|---|---|---|
| MSF-1510 | 150 | 100 | 50 | 1.5 |
| MSF-1714 | 172 | 135 | 50 | 2.6 |
| MSF-2120 | 215 | 205 | 50 | 5 |
| MSF-2820 | 280 | 205 | 50 | 6 |
| MSF-4030 | 400 | 300 | 93 | 15 |
You can fill the forms on the left to get a quote, or you could also scan below QR code to contact with us through Wechat immediately.
