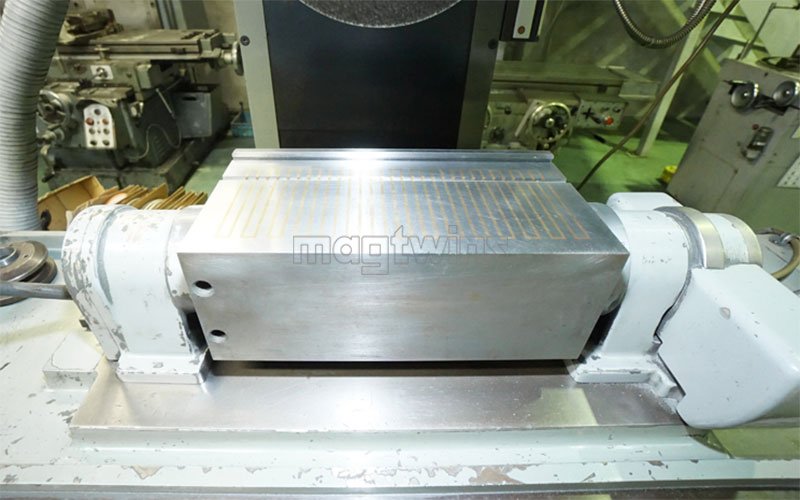

RSM

RSM series is suitable for angle grinding on surface grinders. The strong holding force enable angle grinding of various workpiece(both thin, small or thick)

  • Pole pitch：0.5+1.5mm or 1+3mm or 2+4mm
  • Holding force: 100N/cm2
  • Magnetic field depth：6mm
  • Wearing limit: 6 mm
  • Rotary spindle & stable lcoking device
PDF download Inquiry Now

FEATURES

  • 5-sides machining is possible in one clamp
  • Energy saving, no electric power supply during clamping
  • Workpieces larger than table surface are machinable
  • Reduced consumption of tools
  • Improved finishing and greater accuracies
  • More convenient and high efficiency

APPLICATIONS

Grinding, Turning, Drilling, Automation…

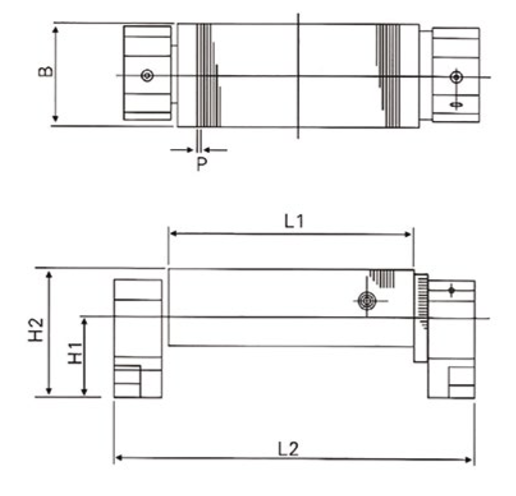

DRAWINGS

ModelChuck Length (mm)Chuck Width (mm)Full Length(mm)Rotary Axis Height (mm)Full Height
(mm)		AngleWeight (kg)Pole pitch (mm)
RSM-1252525012535095145-90°~90°29 0.5+1.5
RSM-1530300150400105160-90°~90°40 0.5+1.5
RSM-1535 350150450105160-90°~90°46 0.5+1.5
RSM-1545450150550105160-90°~90°56 0.5+1.5
