Rectangle Poles Permanent Electromagnetic Chuck

BPEM

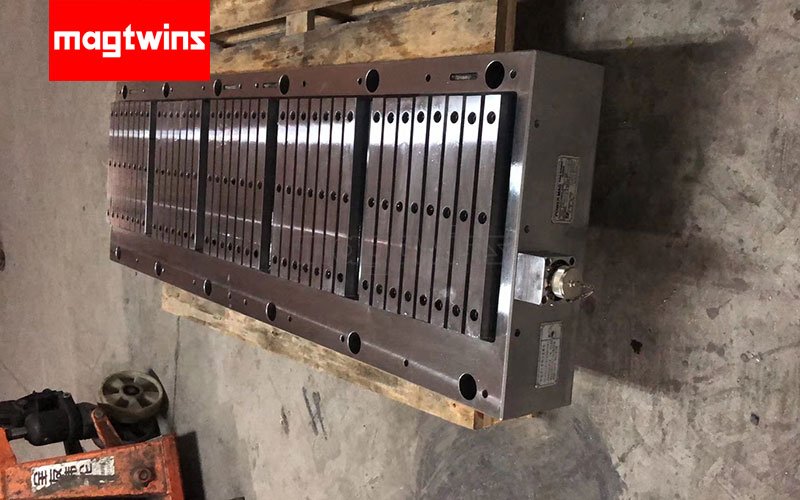

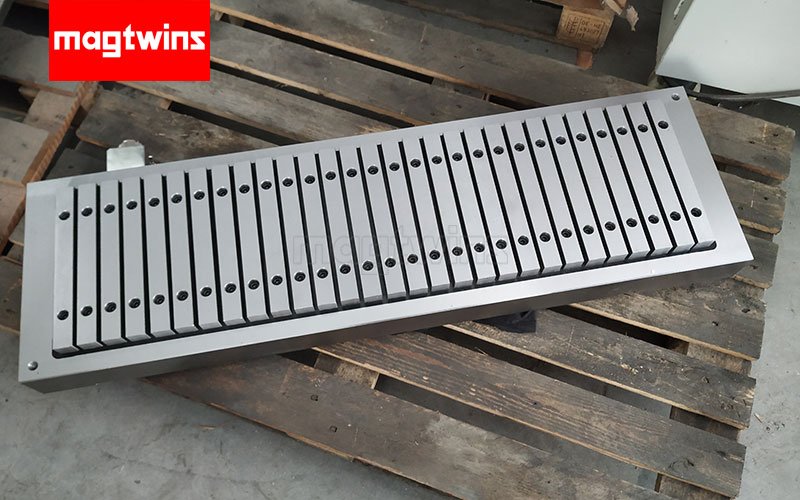

BPEM Permanent Electromagnetic Chucks is designed for heavy duty milling, boring application. It use MAGTWINS bi-stable technology to let you clamp ferrous workpiece of different shapes safely, quickly and economically without any equipment changes.

Pole size：25mm width
Holding force: 180N/cm2
Magnetic field depth：10mm
Wearing limit: 8mm

PDF download Inquiry Now

Permanent Electromagnetic chucks

PEM magnetic chucks can be used easily on all common milling, grinding, turning and machining centers for energy efficient and process reliable clamping. The magnetic clamping technology enables a save deformation and vibration free hold of ferromagnetic workpieces in seconds. This reduces set-up times, preserves tools and ensures highest quality.

Control system for PEM chuck

Flexible control unit could be choosed according to both standard and customized poles layout. The working voltage (200~400v) and frequency(50/60Hz) are also available according to request.

The MAGTWINS control units allow you to activate or deactivate the magnetic chucks. A specially sealed quick-release connector, which is integrated into the control units, connects the unit to the magnetic chuck.The control unit is characterized by its compact and robust construction and ease of use. The control units are default-fitted with a manual control, but can be fitted with a robust, industrial-grade remote control upon request. Depending on the size or configurations of the magnetic chucks, they are available as 1, 2 or 4 channel versions.

Pole extensions for PEM chuck

Pole extension could pretect magnetic chuck from wearing out and make the working life longer. Besides, we could design and manufacture special pole extensions solution for various applications. Both fixed and flexible pole extensions are available in MAGTWINS.

Workpiece of any structure can be perfectly clamped using MAGTWINS pole extensions. The pole extensions adapt perfectly to the contours of the workpiece-the workpiece is supported and rests solidly on the extensions, enabling it to be processed from all 5 sides.

Waterproof structure surface

The high performance epoxy resin filled in poles gaps could protect the chuck surface from coolant oil or water.

MAGTWINS keep optimizing the inner structure to make sure there is no gap on the surface and avoid the coolant oil or water to leak into the inner electrical switch system and make the service life longer.

FEATURES

5-sides machining is possible in one clamp
Energy saving, no electric power supply during clamping
Workpieces larger than table surface are machinable
Reduced consumption of tools
Improved finishing and greater accuracies
More convenient and high efficiency

APPLICATIONS

Milling, Grinding, Turning, Drilling, Automation…

VIDEOS

Model	Length (mm)	Width (mm)	Thickness (mm)	Weight (kg)	Poles
BPEM-303	329	303	68	50	16
BPEM-305	491	303	68	75	24
BPEM-306	609	303	68	95	32
BPEM-405	491	421	68	100	36
BPEM-406	609	421	68	130	48
BPEM-508	771	480	68	195	70
BPEM-608	771	598	68	235	90
BPEM-610	1007	598	68	325	126
