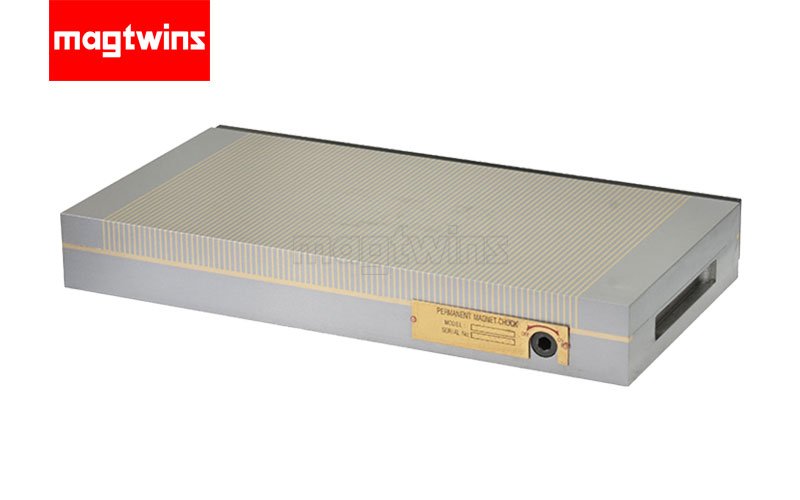

FPM

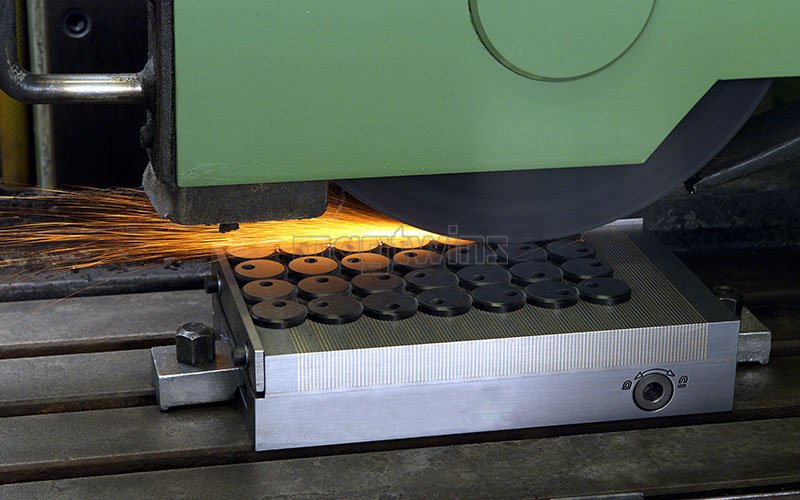

FPM series have a powerful holding force up to 100N/cm2 and it could be used on surface grinding process and EDM process.
5-sides machining is possible in one clamp
How to use Permanent magnetic chuck?
Permanent magnetic chuck have a standard option of allen wrench and 2 chuck clamps. It could be easily installed on the machine worktable with screws.
MAG: Switch the wrench 180 degree from “OFF” to “ON” phase, and workpieces could be hold by invisible but powerful magnetic force. Copper stopper on 2 sides could help to prevent workpiece from sliding on the chuck.
DEMAG: Switch the wrench 180 degree from “ON” to “OFF” phase, and workpieces could be released.

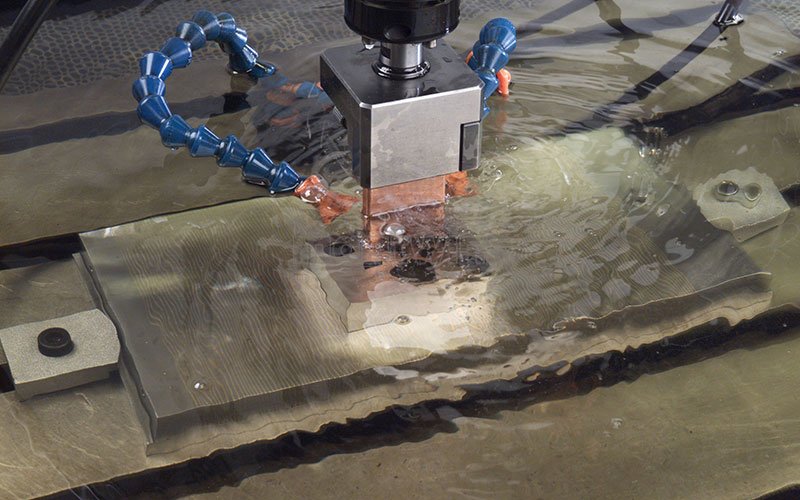

EDM application
FPM series are also widely on EDM (electric discharge machining). The excellent waterproof structure could prevent it from corrosion of coolant oil and water.
Another reason is its low magnetic depth won’t magnetizing spark head.
FEATURES
APPLICATIONS
Milling, Grinding, Turning, Drilling, Automation…
VIDEOS
| Model | Length (mm) | Width (mm) | Thickness (mm) | Weight (kg) | Pole pitch (mm) |
|---|---|---|---|---|---|
| FPM-1018 | 180 | 100 | 56 | 9.5 | 0.5+1.5 |
| FPM-1525 | 250 | 150 | 56 | 20 | 0.5+1.5 |
| FPM-1530 | 300 | 150 | 56 | 24 | 0.5+1.5 |
| FPM-2040 | 400 | 200 | 56 | 35 | 0.5+1.5 |
| FPM-2060 | 600 | 200 | 56 | 52 | 0.5+1.5 |
| FPM-3050 | 500 | 300 | 56 | 56 | 0.5+1.5 |
| FPM-3060 | 600 | 300 | 56 | 67 | 0.5+1.5 |
