FSM
FSM Shuttering Magnets is designed for construction industry to secure the formwork against sliding. With various holding force for choose, the shuttering magnets could adapt to most of the formworks applications.

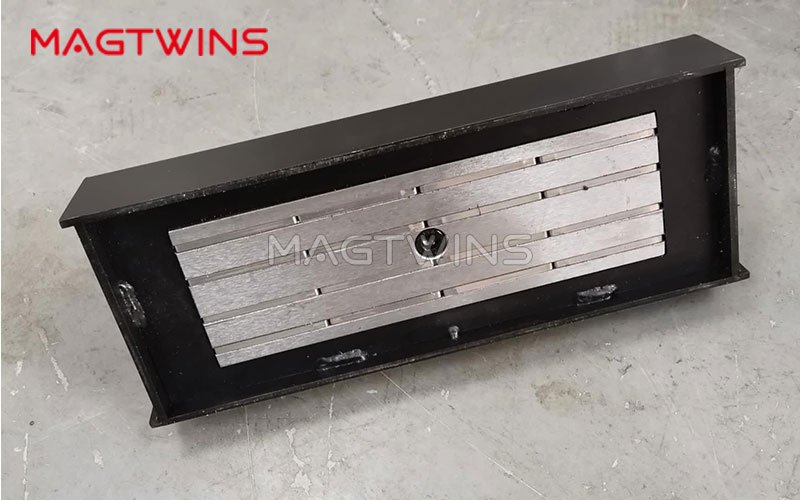

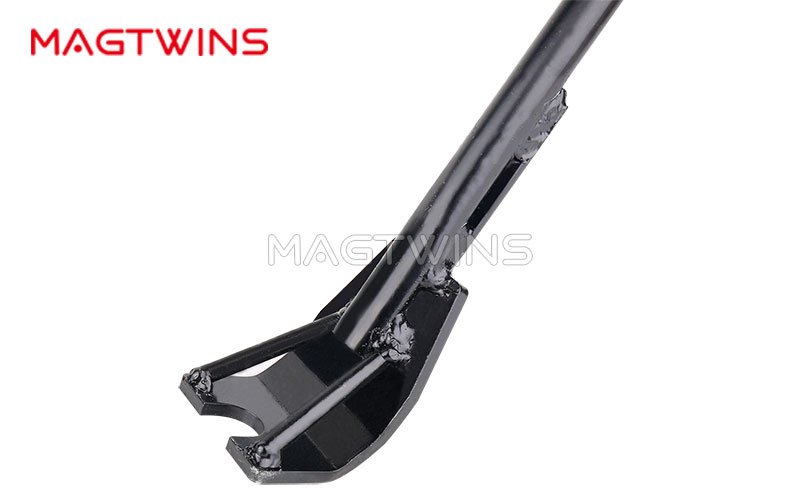

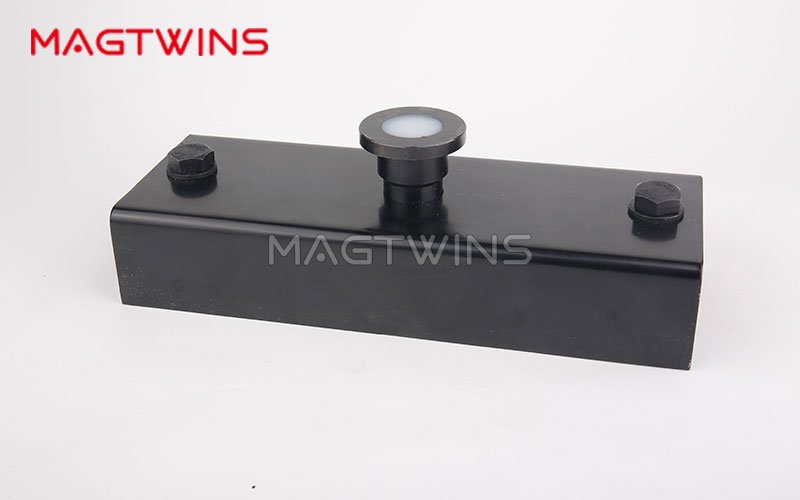

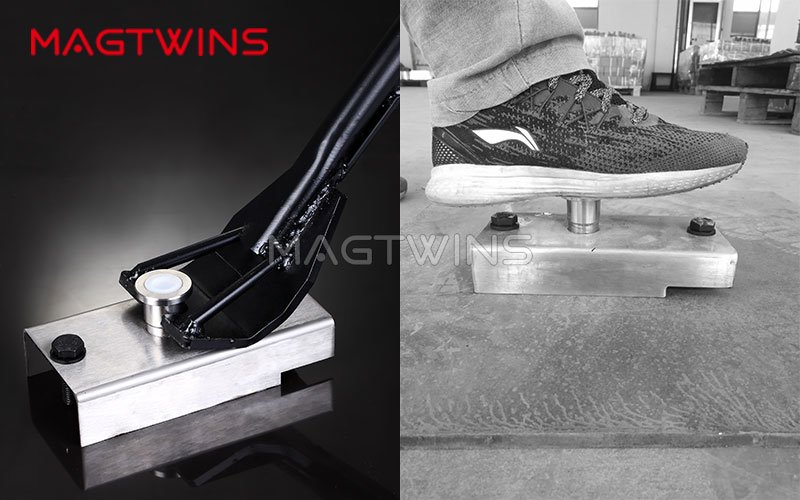

These magnets consist of a steel casing to protect the system of magnets. A push-button on top moves the magnets into contact with a metal surface. A lever is used to raise the button and release the magnets.
related products
| Model | L (mm) | L1 (mm) | h (mm) | M (mm) | W(mm) | Holding Force(kgf) |
|---|---|---|---|---|---|---|
| FSM-900 | 280 | 230 | 60 | 12 | 70 | 900 |
| FSM-1600 | 270 | 218 | 60 | 16 | 120 | 1600 |
| FSM-2100 | 320 | 270 | 60 | 16 | 120 | 2100 |
| FSM-2500 | 320 | 270 | 60 | 16 | 120 | 2500 |
| FSM-3100 | 320 | 270 | 60 | 16 | 160 | 3100 |
