Carbide Alloy Magnetic Chuck For Grinding

CMC

The CMC magnetic chuck is suitable for holding carbide alloy parts, used for woodworking during re-grinding operations.

It is especially suited for linear or surface grinders because the supporting bed is parallel with the magnetic surface.

Magnetic field intensity is higher than 3500 gauss
Suitable material: tungsten steel, hard alloy, carbide alloy
The magnetic field always exist, its not switchable
Magnetic field depth：6mm
Wearing limit: 6 mm

PDF download Inquiry Now

Carbide Alloy description

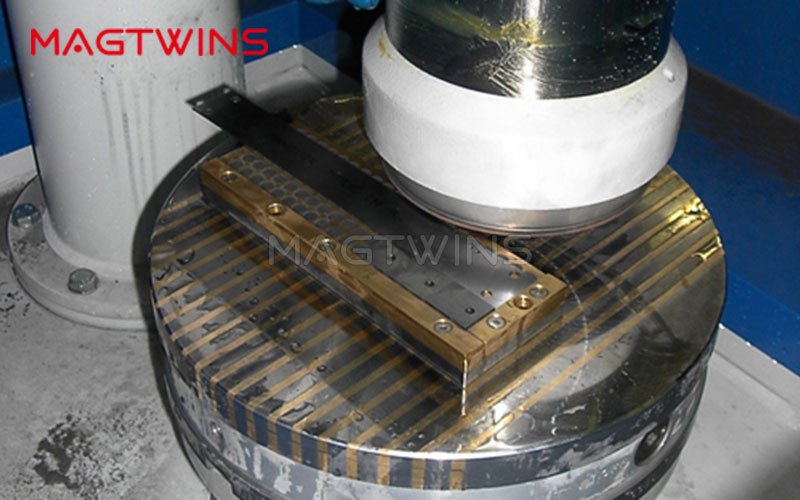

The chuck has a strong holding power because the tools lay directly onto the magnets and so you can re-sharpen very small pieces. The upper part of the chuck is made of BRASS, and that grants a longer life of the tool. The magnetic chuck can be both secured to any type of magnetic chuck and mechanically bolted by means of the four holes around the edges, aligning or flanking a number of chucks.

It is suitable also for smaller work-pieces. It can be used on most straight knife grinding machines, and can be fixed on either a standard magnetic chuck or a mechanical table.
