Applications

Applications.

Ferrous Workholding & Lifting: Due to the inovation design of PEM, PM, LM tecnology, we could offer a full solution for most of ferrous clamping and gripping applications, such as metal cutting, automation, molds and dies, plastics, automotive, shipbuilding, train traffic, steels warehouse industries…

Nonferrous workholding: It’s hard to clamp nonferrous workpiece(eg: Aluminium, stainless steel, copper plate, plastic plate, glass) or parts with single magnetic systems, that’s why we develop the vacuum chucks and freezing chucks.

Robotics & Automation Industry Metal Cutting Industry Molds & Dies Industry Plastic Industry Steels Industry Rail Traffic Industry Automotive Industry Shipbuilding Industry Construction Industry

Robotics & Automation Industry

Thanks to magnetic holding technology, gripping of heavy load parts are more and more easy. The magnetic gripper APEM series could be used to realize 360 degree overturn and moving for robot arm and automation line. Followed with “Industry 4.0” trend, it would be more and more widely applied to intelligent plant in the near future.

Metal cutting industry

As one of the most efficiency workholding tools for metal parts/workpieces, MAGTWINS’ prouducts are widely used in metal cutting industry.

Considering to traditional clamping tools, Permanent electromagnetic chucks & Permanent magnetic chucks have the advantage of high working efficiency, high accurancy, 5 side machining available at one single set-up, more convenient to operate, reduced consumption of clamping tools… The holding force up to 16kg/cm2 is powerful enough to hold various sharps iron parts with the help of pole extensions.

Molds & Dies Industry

As a popular and convinient holding tools, magnetic chucks are widely used in Molds and dies industry. It helps to improve working efficiency.

Plastic Industry

The IPEM series is regarded as one of best assistant molding change tools for injection molding machine. It saves 90% mold change time, convinient to operate, don’t need power supply during working, less deformation….

It contains two platens and controller system and very easy to install even when you first use it.

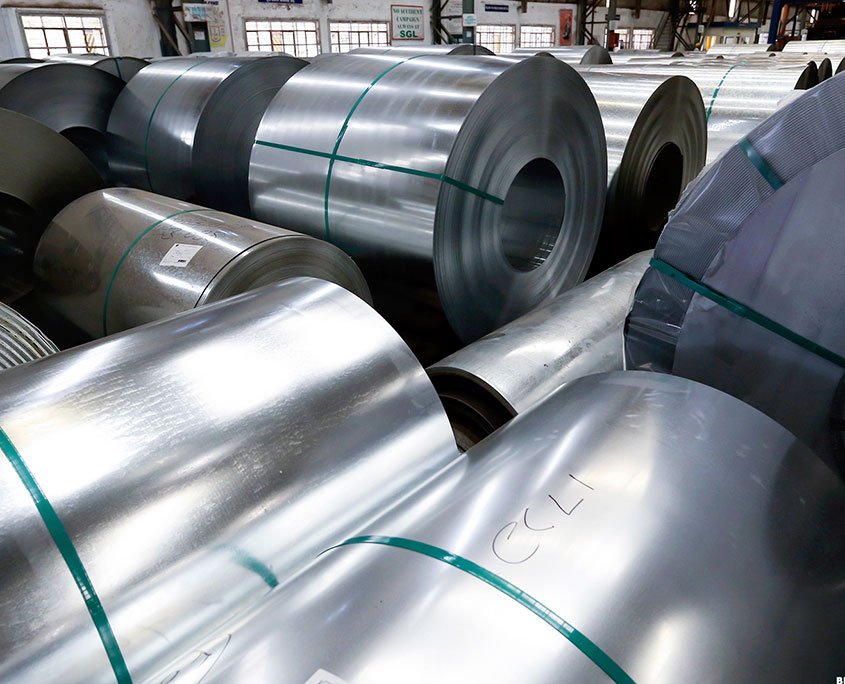

Steels Industry

Magnetic lifting systems, includes manual lifting magnets and Permanent-electro magnetic lifters could be suitable for lifting and moving of steel sheets, plates, coils, tubes, blocks……

Permanent lifting force makes it much more safer than traditional clamping systems. Besides, it only need one contact surface to hold the steels, makes its flexible to used in various clamping situation.

Rail Traffic Industry

Rail steels have unflat machining surface, that’s why its hard to produce with other workholding tools.

Whild our RPEM series product could help to solve this problem. It’s perfect suitable for curved surface with the help of special pole extensions. Multi RPEM could be used together to processing a long rail up to 12 m or even longer.

Automotive Industry

Automotive industry is grows fast in recently years. PEM could be applied in the automation production line and combine its control system with the PLC program.

Shipbuilding Industry

Large frame fixturing and machining happens a lot in shipbuilding industry. Due to PEM chuck’s flexible and efficient property, it could be used to clamp the large part or frames in less deformation.

Construction Industry

Our magnetic lifting systems could be use to lifting and move large steel frames for construction. Fast holding and releasing could ensure very high working effiency during work.

Workholding Systems

The key factors that influence magnetic workholdings are the surface contact condition. Both air gaps, roughness, magnetic conductivity of materials, temperature could change the clamping force.

Lifting Systems

Lifting Systems: When we design the lifting systems capacity, we should count at least 3 times safety factor into consideration. The magnet poles could machined into different sharps to satisfy various application.

More Applications?

If you have any new application and want to find new solution of clamping and lifting, welcome to discuss with our experienced engineers through our company Email: sales@magtwins.com
